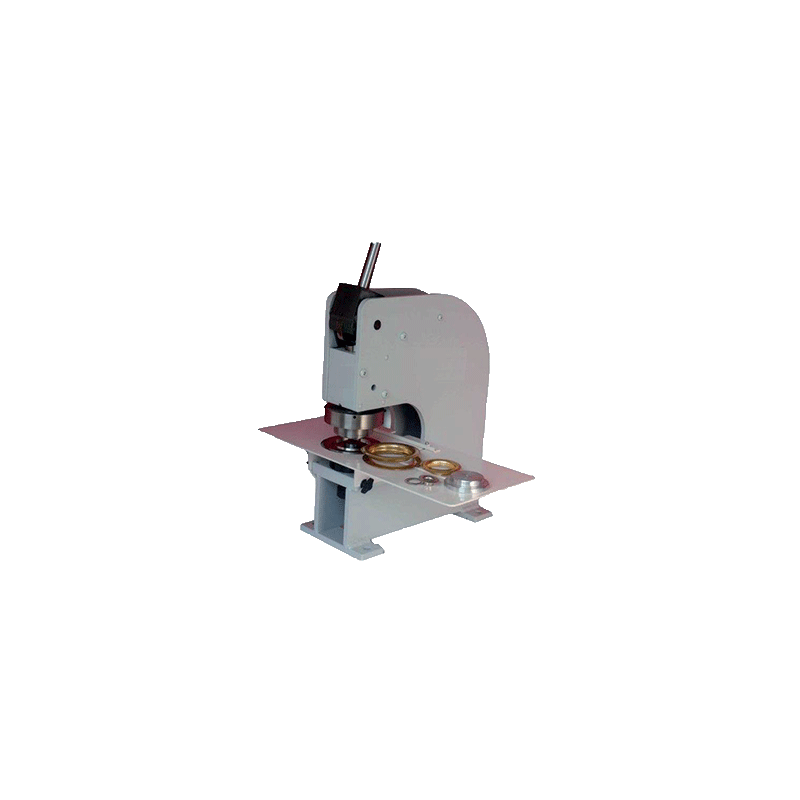

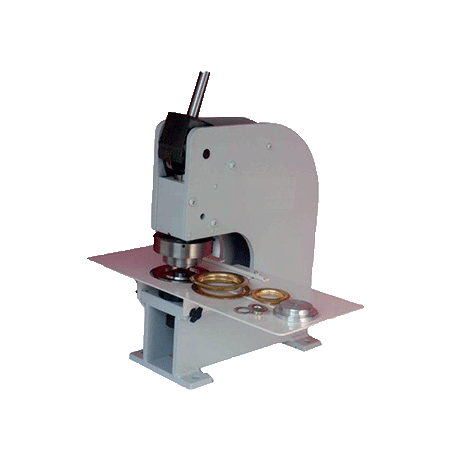

bManual setting and drilling machine MP22G
FFF 400 0002
New product
Manual drilling : Ø 6,5mm to 40mm
Drilling and Crimping in 1 operation For tarpaulin eyelets from No. 11 to No. 22, and No. 420
For GM and TITAN eyelets
For grommets with teeth from No. 1 to No. 5

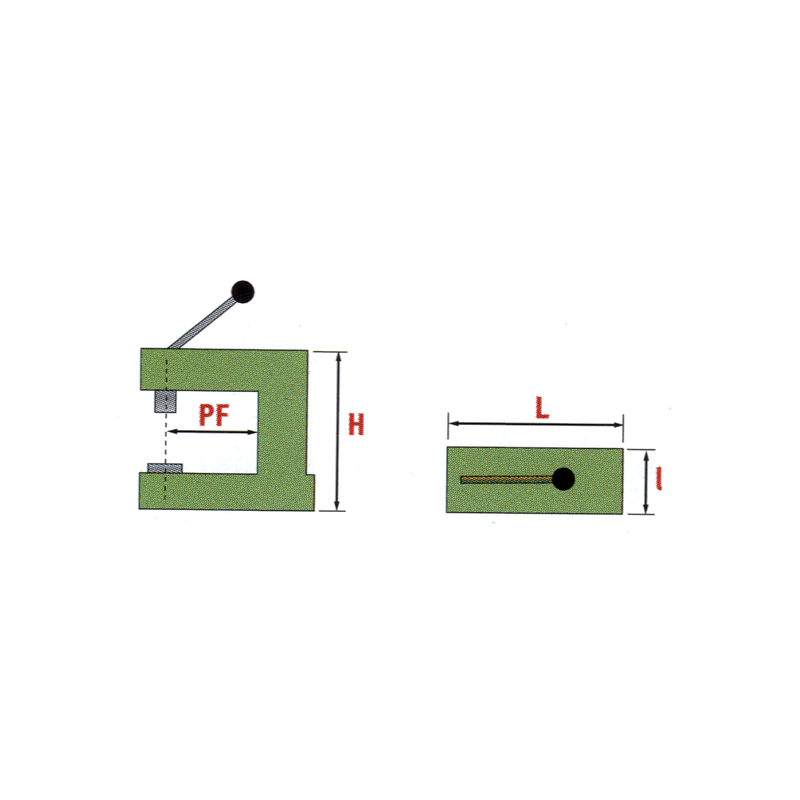

Data sheet
| Packaging | 1 |
| Weight (kg) | 8 |
| Gooseneck depth (mm) | 110 |
| Lenght (mm) | 270 |
| Width (mm) | 70 |
| Hauteur | 280 |
More info
Drilling and crimping of the eyelet in a single operation, with no drilling beforehand.
Very easy to use.
Polyvalent press for the installation of the full range of eyelets 11 (Ø. 6.5 mm) to No. 22 (Ø 40 mm) and the TIR oval eyelet No. 420.
The cutter is the only wearing part that we can sharpen if necessary.
The machine comes with an adjustment system for positioning eyelets for a center distance up to 270 mm.
